PN-Y425

Excellent Image Quality

Full HD (1,920 × 1,080) resolution brings images to life with vivid,true-to-life details. Everything from thin lines to fine text to photographic images can be displayed in stunning clarity. The effect is enhanced by a narrow and unobtrusive bezel of 16 mm* which gives these monitors a modern look that emphasises the onscreen content.

USB Media Player

A built-in USB media player allows playback of still images and videos stored on a connected USB memory device. Users can set up the system to play slideshows of promotional or informational content without using a PC. For added security, each model comes with a USB flash drive cover to prevent theft of the data storage device.

Choice of Screen Size and Installation Mode

The PN-Y555/Y475/Y425/Y325 monitors come in four sizes—55, 47, 42, and 32 inches—to suit a huge range of diverse display scenarios. And to match the application and content on display, the monitors can be set up in either a landscape or a portrait orientation. A portrait installation offers the look and impact of a poster, whereas a landscape installation provides a vivid canvas for wider scenes.

Sharp Digital Signage Software (Option)

Sharp Digital Signage Software is versatile management software that provides total support for the creation, scheduling, distribution, and display of a wide range of content for the PN-Y555/Y475/Y425/Y325. To meet the various needs of its customers, Sharp offers different versions of the software: PN-SSO1 for stand-alone systems; PN-SS02 Network, PN-SS05 Pro, and PN-SW05 Pro Web Server versions for networked systems; and PN-SV01 Viewer Version.

Image Quality and Functions

Enlarge (Zoom) Display Mode

Multiple monitors can be grouped together to display one enlarged image, thanks to Enlarge (Zoom) Display mode, which corrects the framing of that image to eliminate misalignment between monitors.

Single-monitor Display         Enlarged Four-monitor Display

Mirror Display Mode (Daisy Chain)

Mirror Display mode enables the same onscreen content to be displayed on a series of daisy chained
PN-Y555/Y475/Y425/Y325 monitors. This function can be used to reinforce advertising messages in public spaces or to facilitate communications in large office or conference settings.

User-friendly Design

Environmentally Friendly Design

These LCD monitors conform to the RoHS Directive restricting the use of hazardous substances.

Built-in Speakers

Built-in speakers eliminate the need for external speakers and keep the PN-Y555/Y475/Y425/Y325 monitors stylishly streamlined. The speakers emit sound from both sides of the monitor, making them ideal for conveying audio information and playing location-appropriate background music.

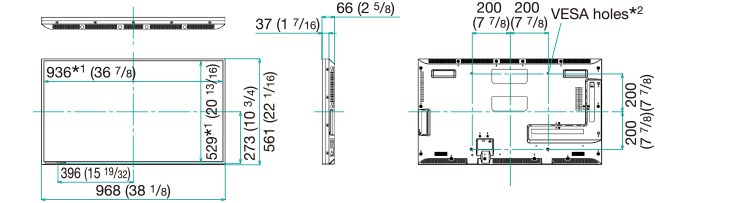

VESA-Compliant Mounts

VESA-compliant mounts provide right/left pivot and swivel, ensuring a high level of safety when LCD monitors are mounted on a wall or suspended from a ceiling.

Reliability/Durability

Power on Delay

The Power on Delay function allows a time delay between the startup of each monitor in video walls or multi-monitor installations. This reduces the load placed on the power supply when a number of monitors are turned on at the same time.

Fanless Architecture

The PN-Y555/Y475/Y425/Y325 monitors incorporate a fanless architecture that serves to facilitate monitor maintenance. The fanless design maintains airflow and dissipates heat without the use of mechanical air-ventilation fans, which can attract dust and create noise.

Built-in Temperature Sensor

A built-in sensor detects rising temperatures inside the monitor and prompts automatic adjustment of the backlight system so that temperatures remain within operational limits.

Display Managment

ID Setting

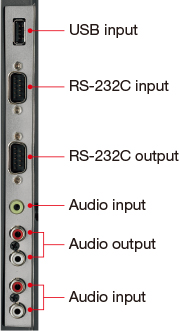

Thanks to an RS-232C interface, PN-Y555/Y475/Y425/Y325 monitors* can be easily controlled and monitored from a central location via a PC. Each monitor can be assigned an individual ID code to specify when remotely turning that monitor on or off, switching its input, or making various screen adjustments and settings.

* PN-Y555/Y475/Y425/Y325 monitors can be connected together in a daisy chain configuration.

RS-232C straight cable

Scheduling

For total ease of operation, the Schedule function allows up to eight settings to be pre-programmed for automatic monitor turn on/off at precise times on a daily, weekly, or one-time basis.

Log Saving/Output

To boost the troubleshooting efficiency of service technicians, operating logs, signal changes, information on operating irregularities, and other such data can be saved and tracked.

Self Adjust Function

With an analogue PC connection, when a change occurs to the input signal timing, the clock phase will automatically adjust accordingly.
